design and draw bucket elevator and pan conveyor
design and draw different kinds of bucket elevators conveyors in petrochemical companies , cement factorys , Steel factores , grain factores , mines , sugar , wheat ,gypsum , Iron ore , pellets , asphalt , solt , oil and . . .
desing all kinds of pan conveyors and bucket elevator with single chain , double chain , belt bucket elevator , design and calculate motor gearbox coupling chain wheel , inlet chute , outlet chute , casing , chain bow , buckets and . . .
sample

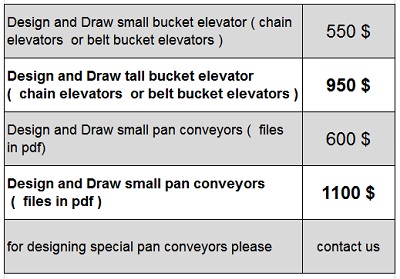

pan conveyors and bycket elevators design and draw price
double chain bucket elevator

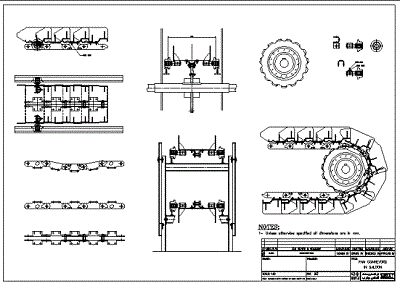

Autocad drawing for pan conveyor like Aumund Conveyors

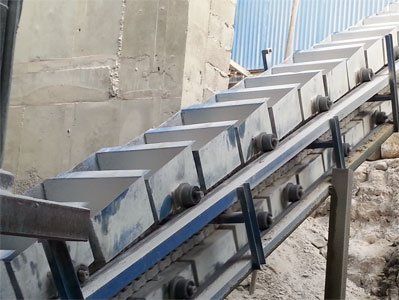

pan conveyor after mounting
We calculate
- design head tail , take up , chain wheel , single casing , double casing , inlet chutes , outlet chute , inspection door
- calculate the speed , capacity ,ton/hr , plate thk , temperature , plate material , chain type and size , belt type and strength , EP or steel cord belts , bearing and housing , shaft size
- tail pulley , head pulley , motor , gearbox , bucket width , single strand , two srand , material size
conveyor calculate and draw

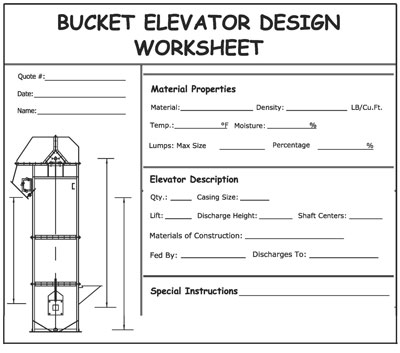

Bucket Elevator Design worksheet

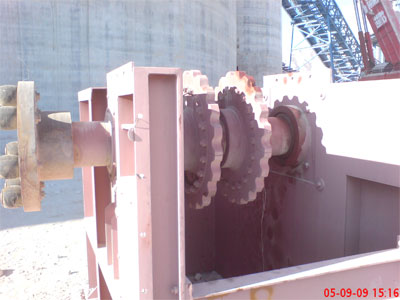

Aumund pan conveyor head
