design screw conveyors and drag chains
design and draw different kinds of screw conveyors in petrochemical companies , cement factorys , Steel factores , grain factores , mines , sugar , wheat ,gypsum , Iron ore , pellets , asphalt , solt , oil and . . .
desing all kinds of drag chains such as , single chain , double chain , wide chain conveyors , scrapper with roller chain and . . .
sample

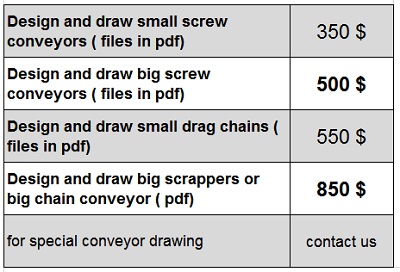

belt conveyors design price

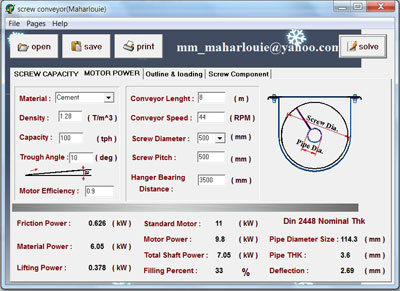

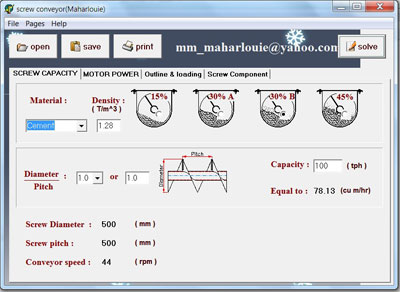

use special program for calculations screw conv.

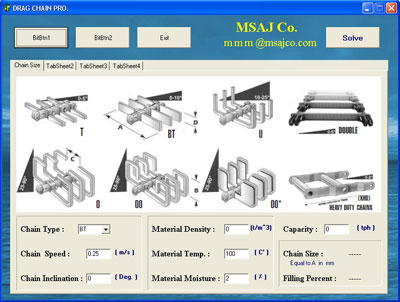

chain conveyor calculation software

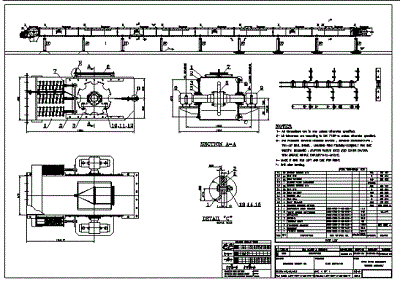

Autocad drawing for drag chain scrapper
resume
- report for designing screw conveyors , design and draw screw conveyor , pipe type , U type , mixer , paddle conveyors , calculate the helical plate , gearmotor , coupling , shaft and pipe , middle bearing , end bearing housing
- design and draw dran chain conveyors , scrappers , with single chain or double chain , thin blades , wide blade , hard facing blades , teflon blades , long scrapper conveyor , wide drag conveyors
- draw sprocket for drive side and tail side , tension system with spring and bearing and housings
- calculating motor power , gearbox speed , conveyor capacity and size of screw conveyors and drag chains
conveyor calculate and draw

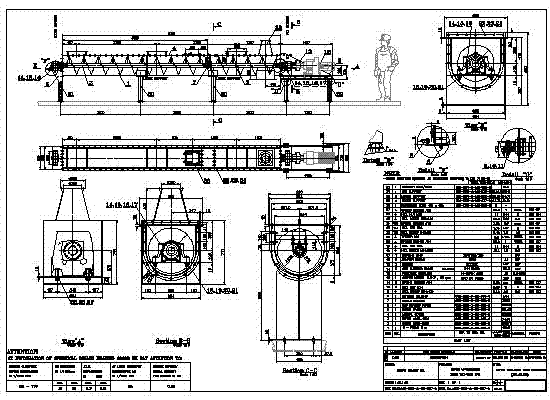

design screw conveyor size and power

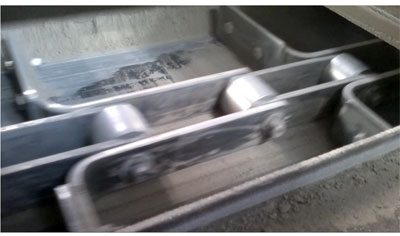

chain conveyor with wheel chains
